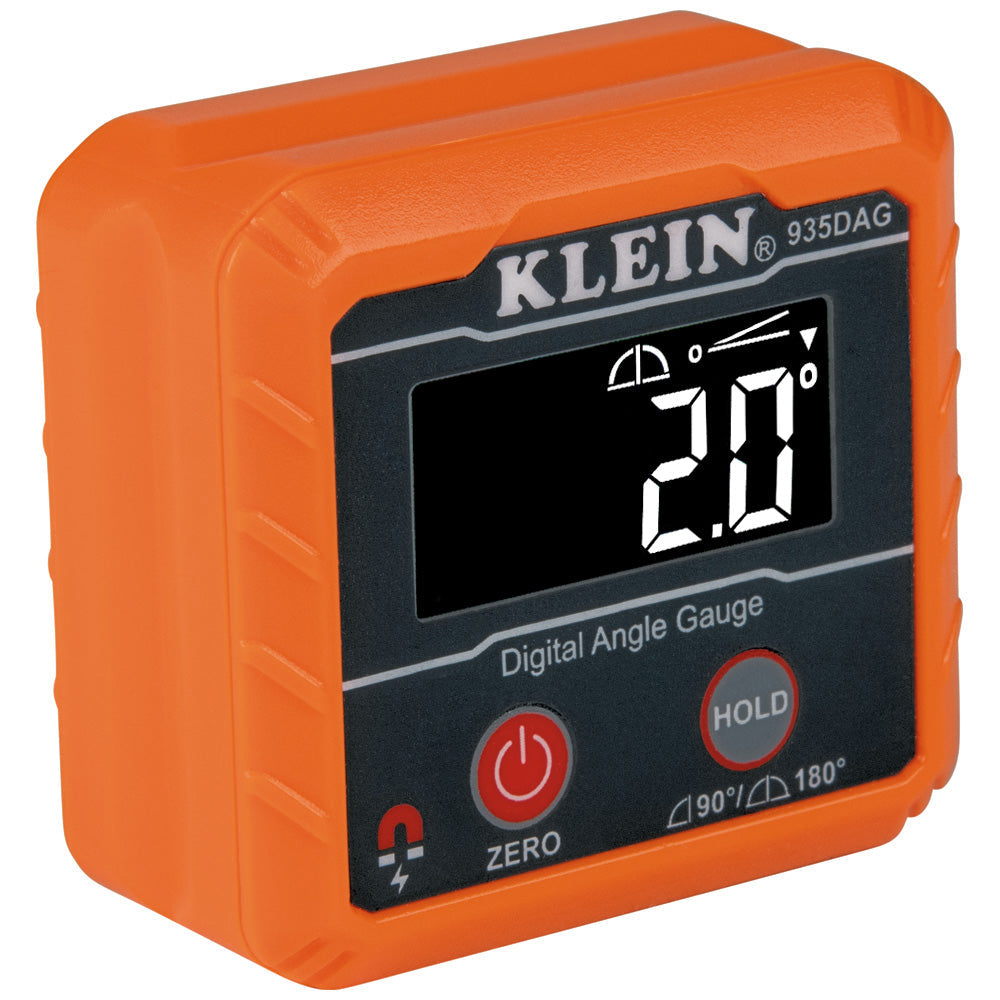

Klein Digital Angle Gauge and Level
Klein Tools
Item Details
Model: 935DAG

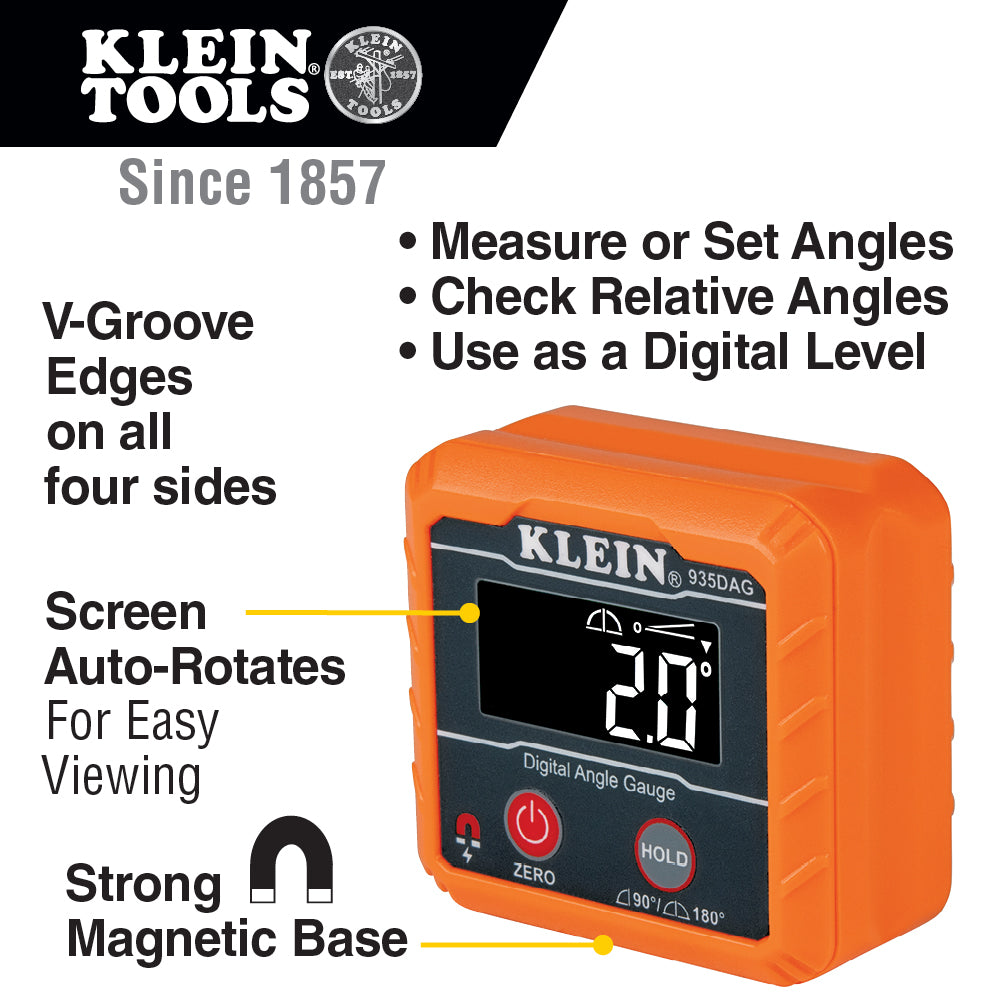

- This Digital Angle Gauge and Level can measure or set angles, check relative angles with zero calibration feature, or can be used as a digital level

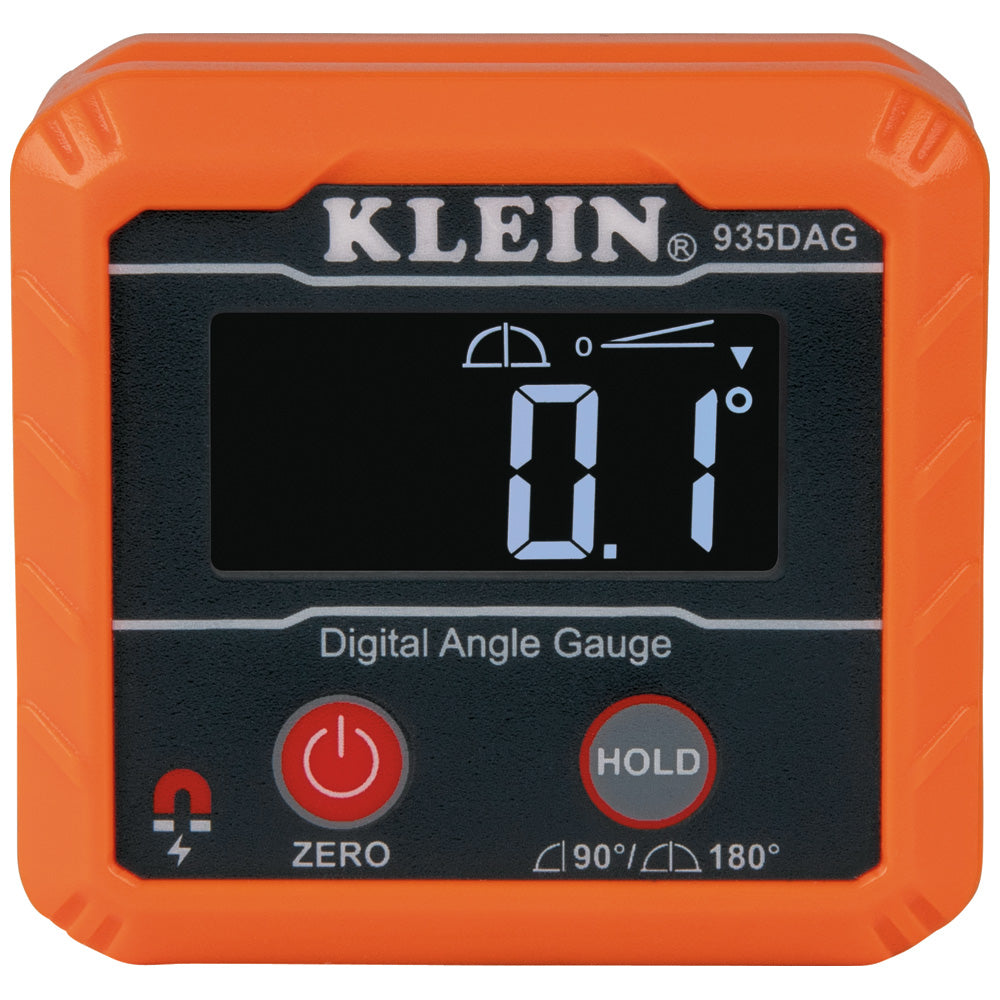

- High visibility reverse contrast display improves visibility in dimly lit work environments

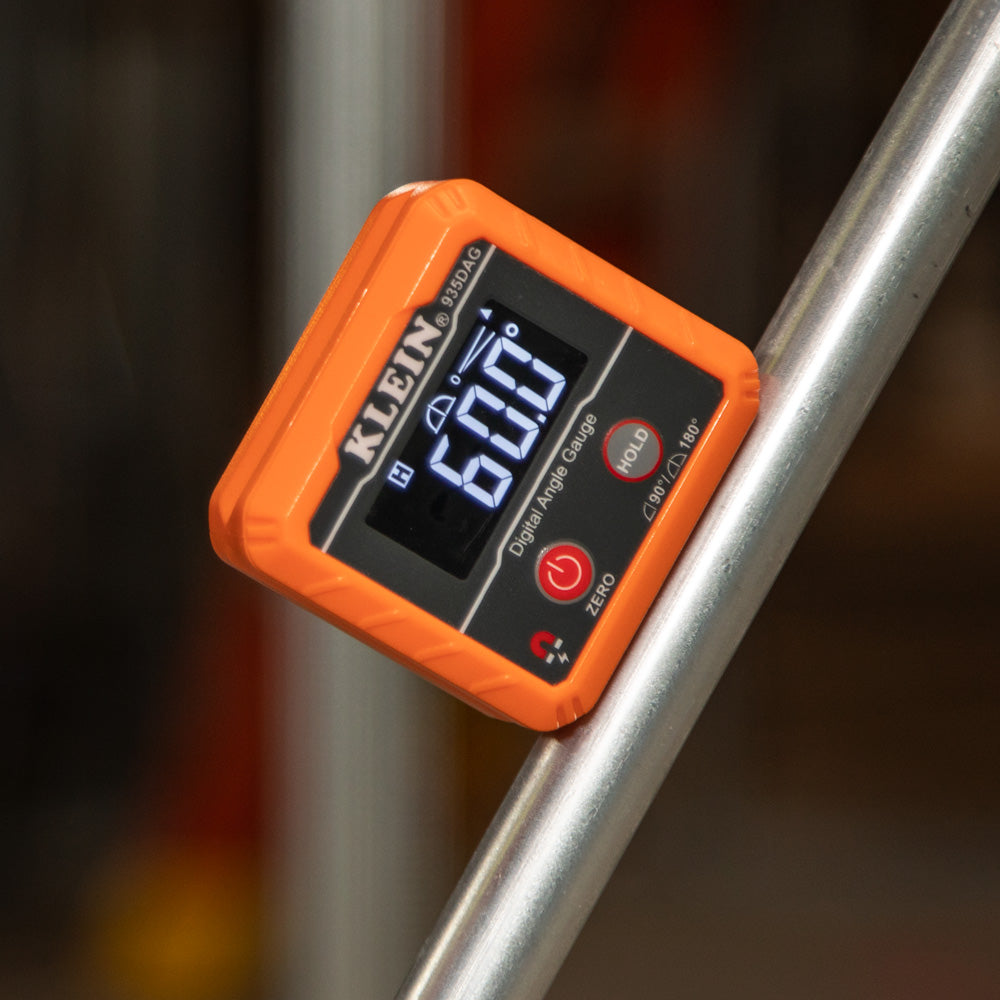

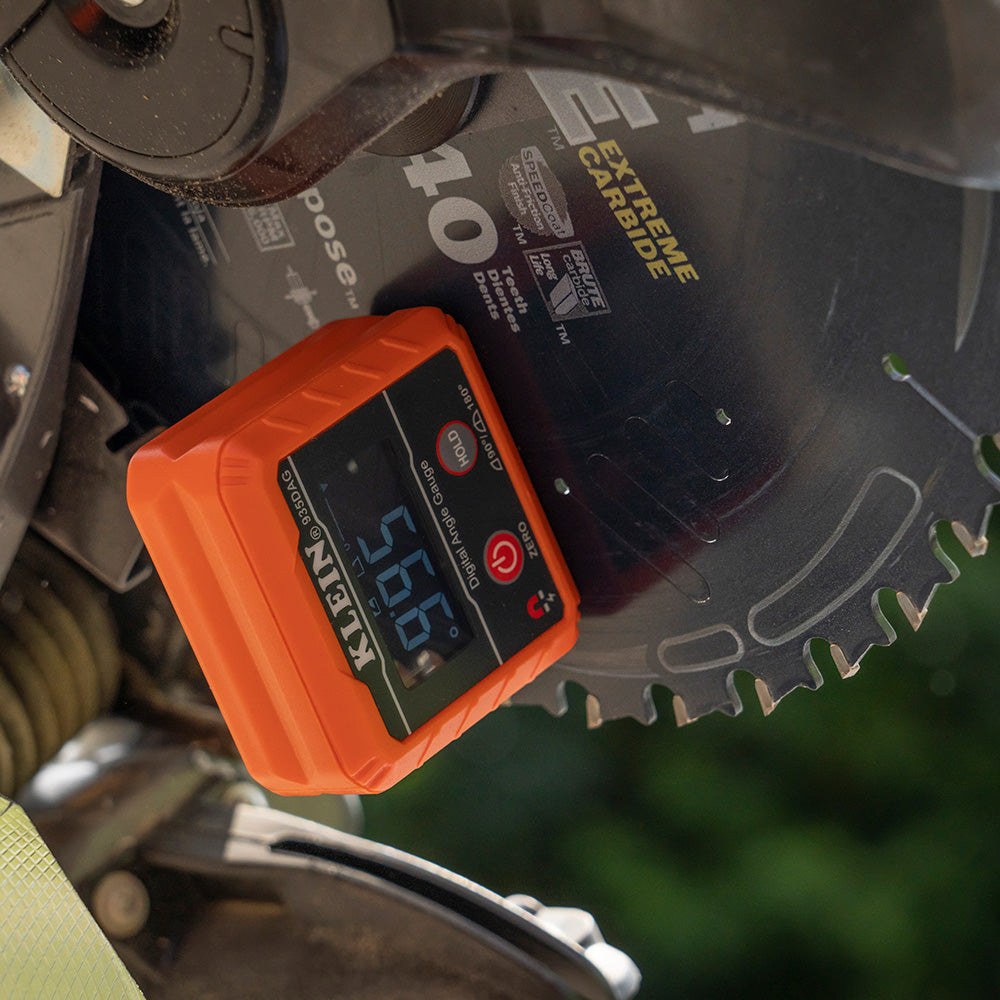

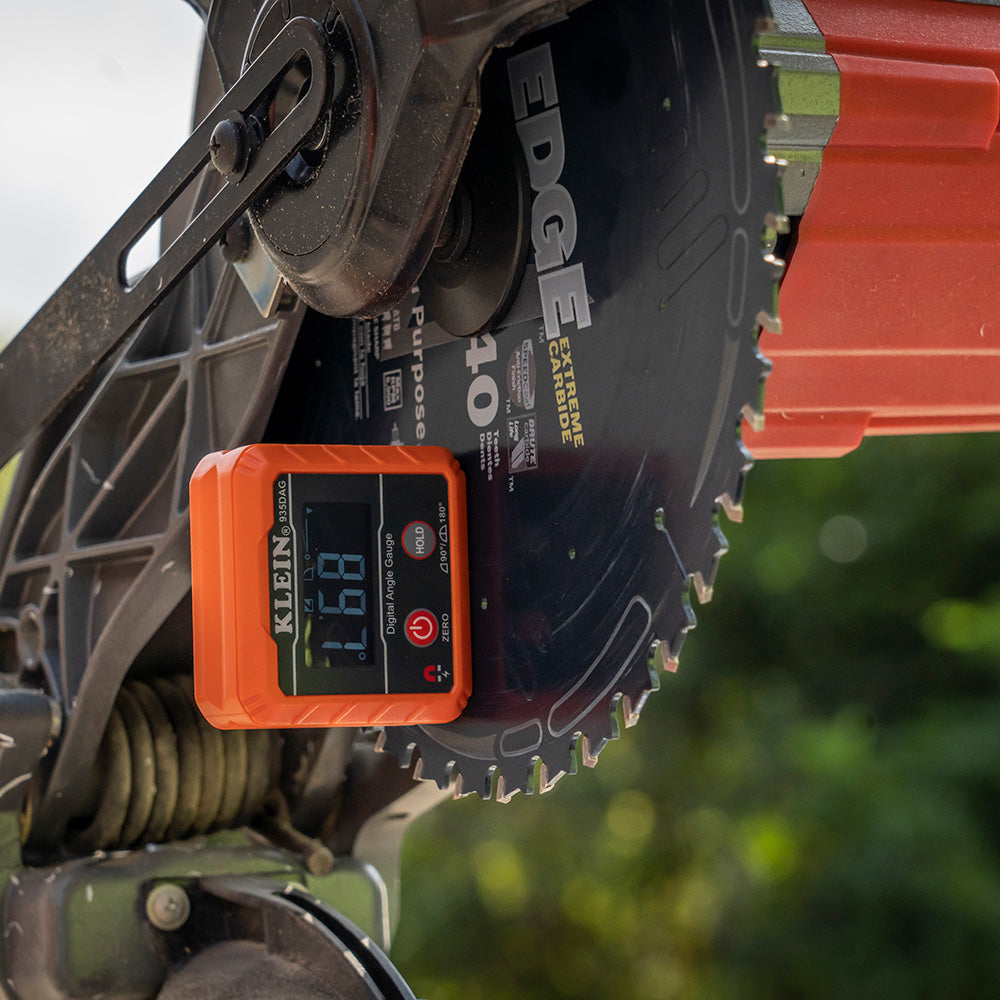

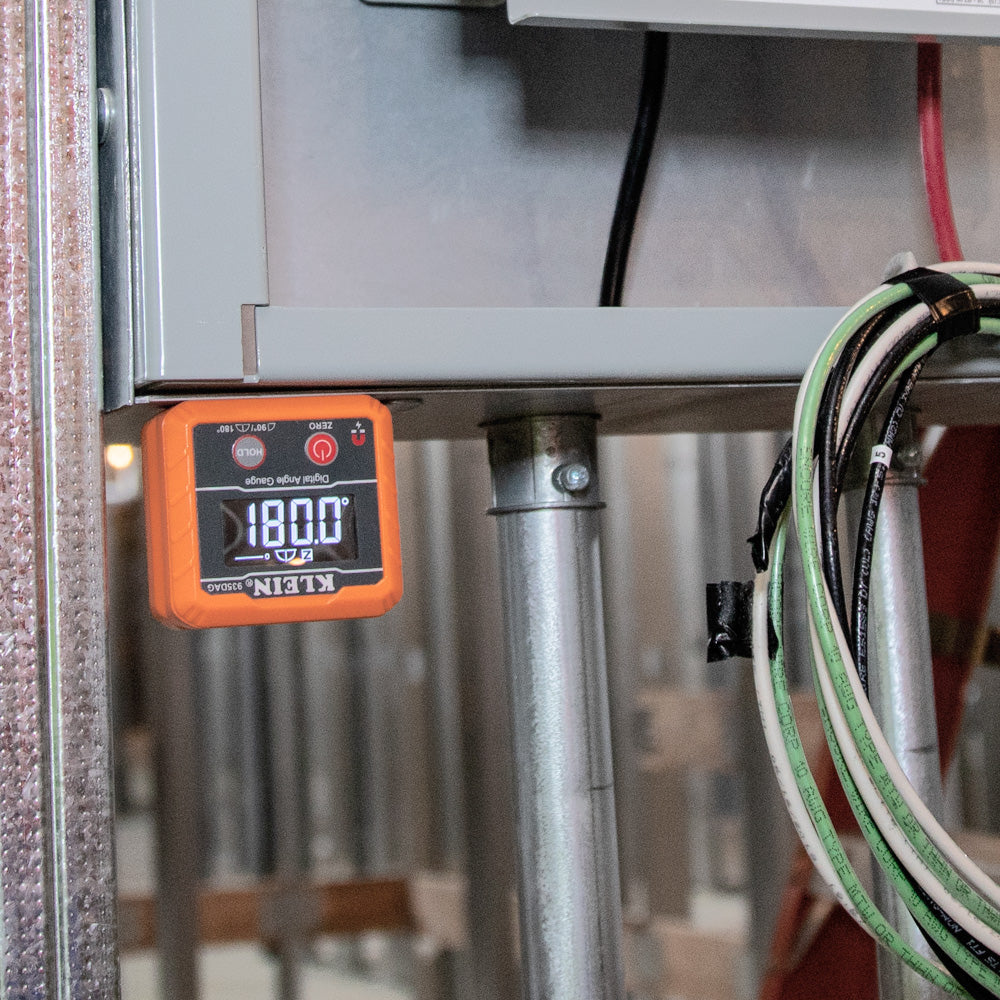

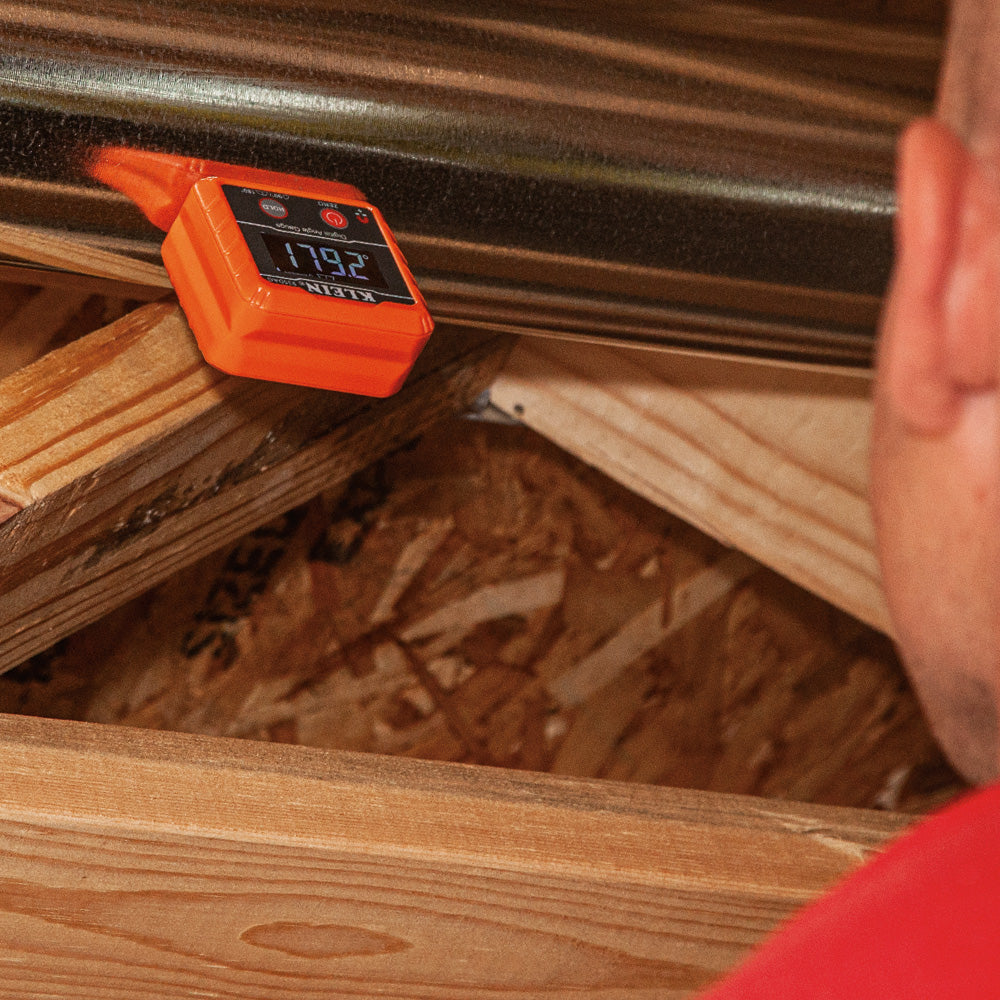

- Strong magnetic base to attaches to conduit, pipes, saw blades, vents, ducts, and other ferromagnetic surfaces

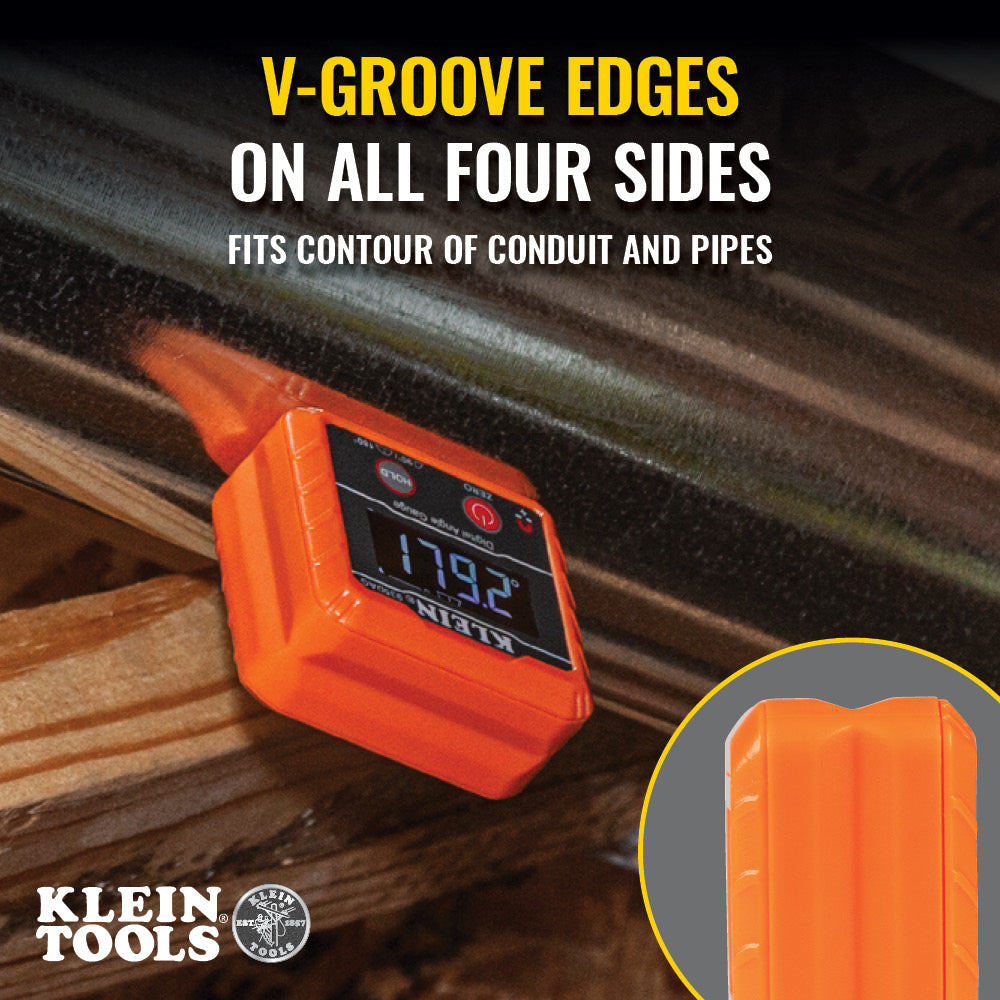

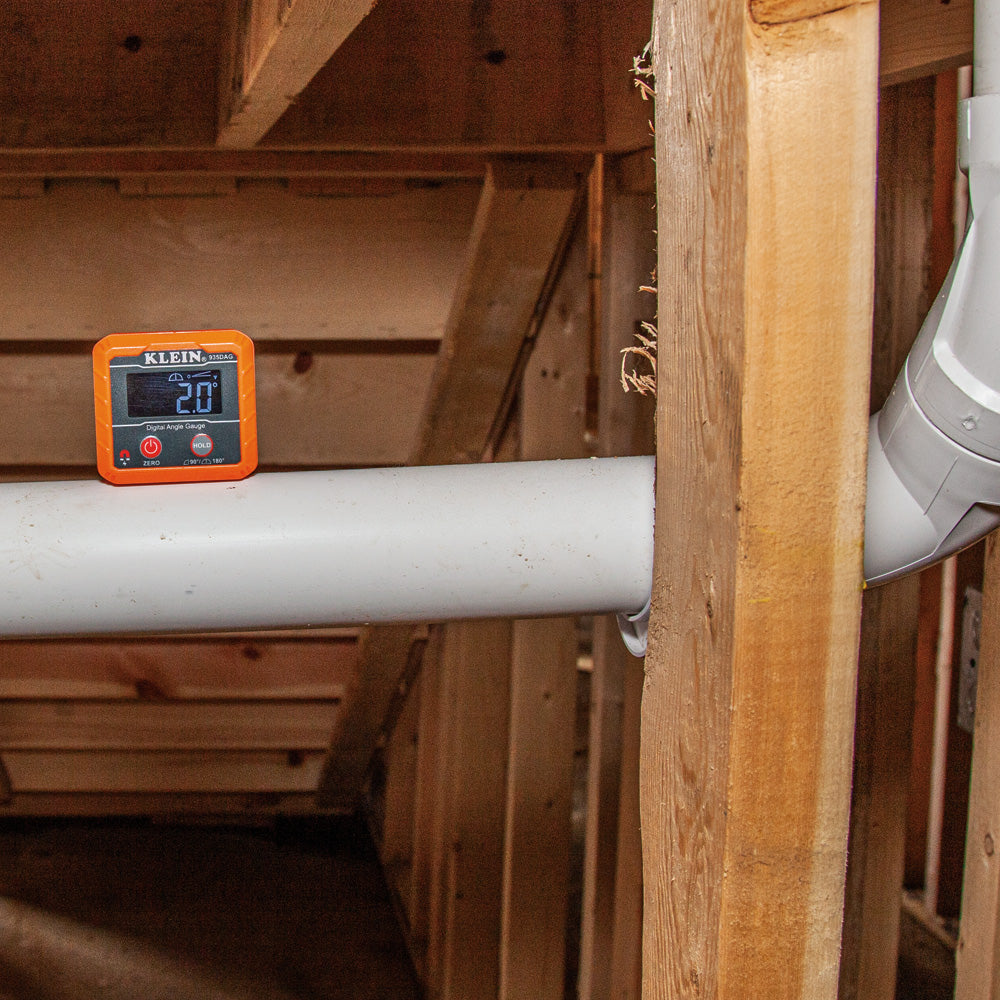

- V-groove edges enable optimal alignment on conduits and pipes for bending and alignment

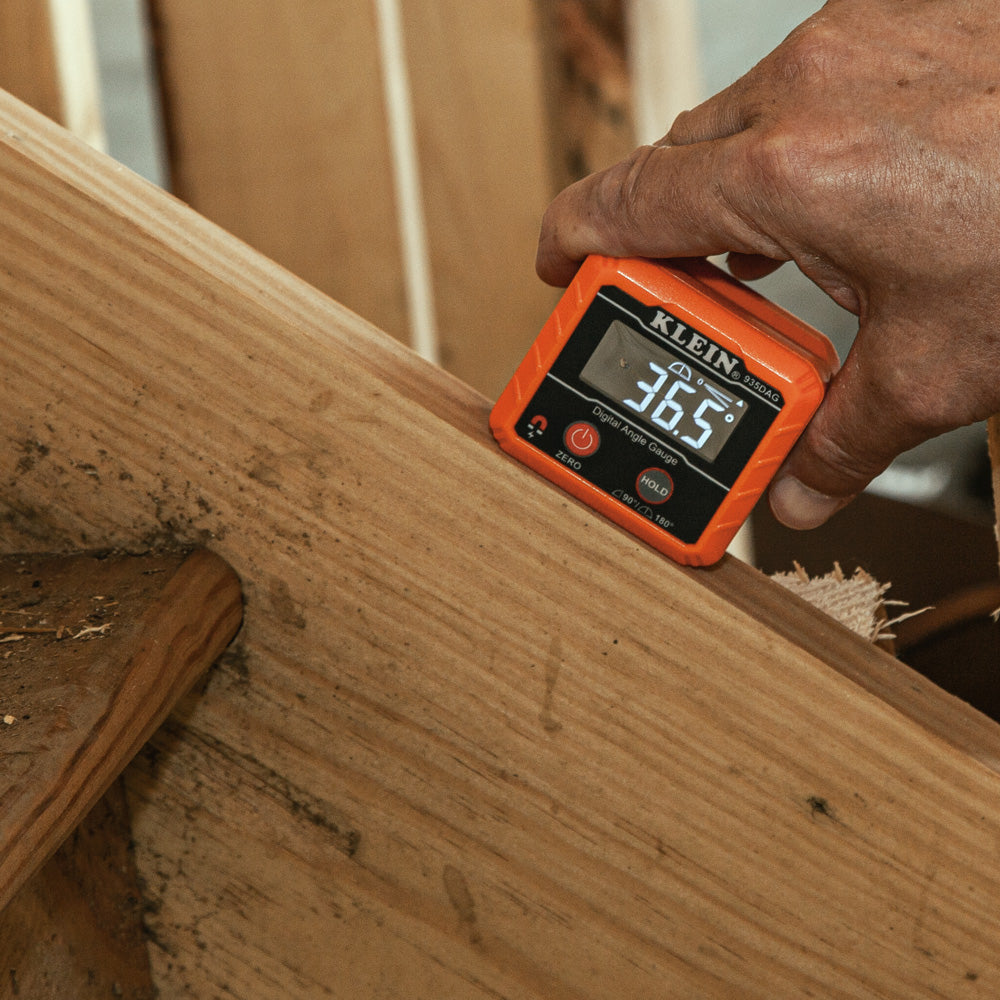

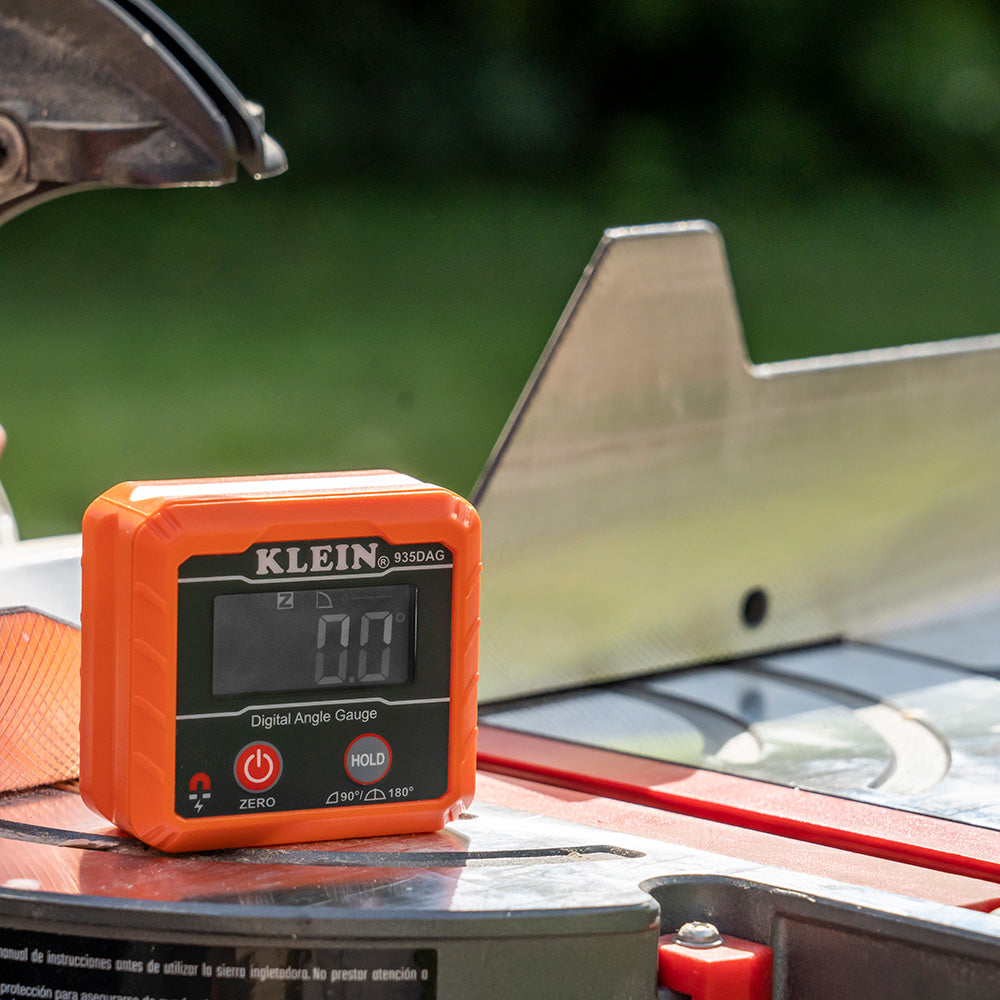

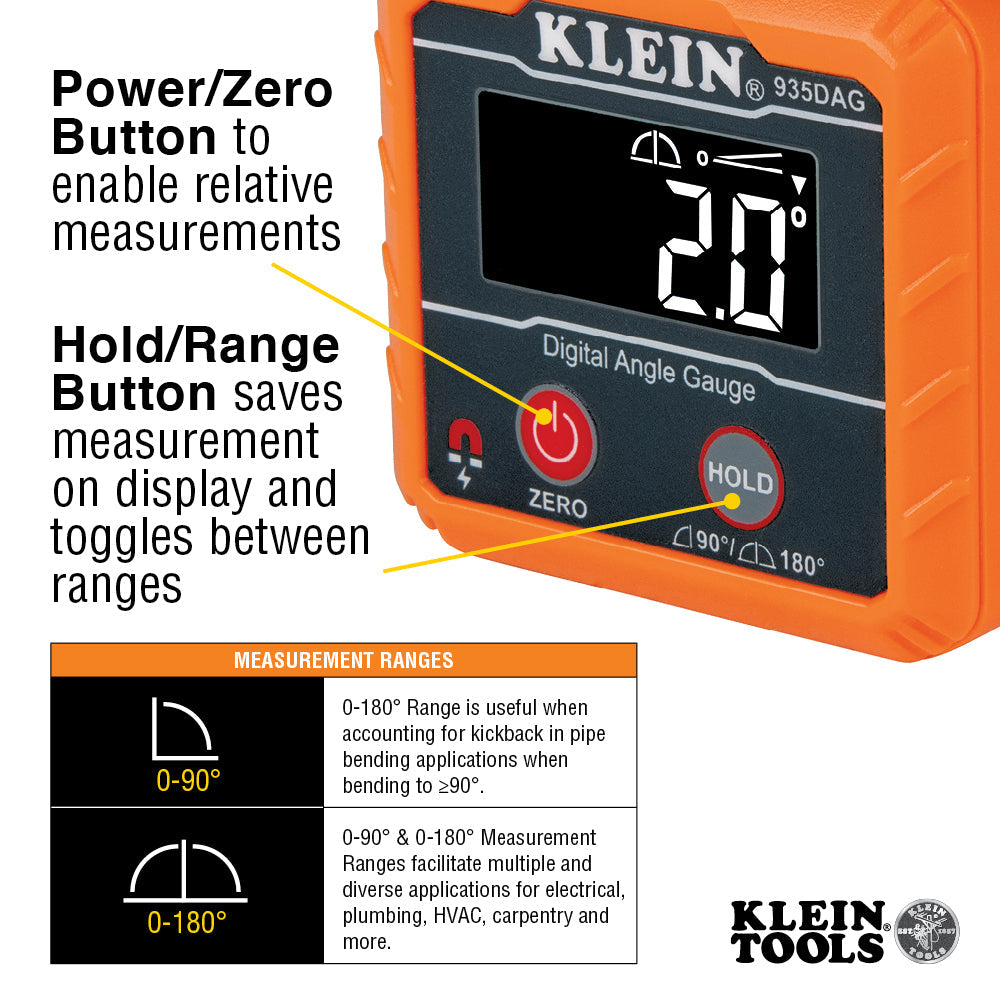

- 0 to 90-Degree and 0 to 180-Degree measurement ranges provide easy use in applications such as woodworking, bending conduit, installing electrical panels, and working on machinery
- 0 to 180-Degree range is useful when accounting for kickback in pipe bending applications when bending to 90-Degree or more

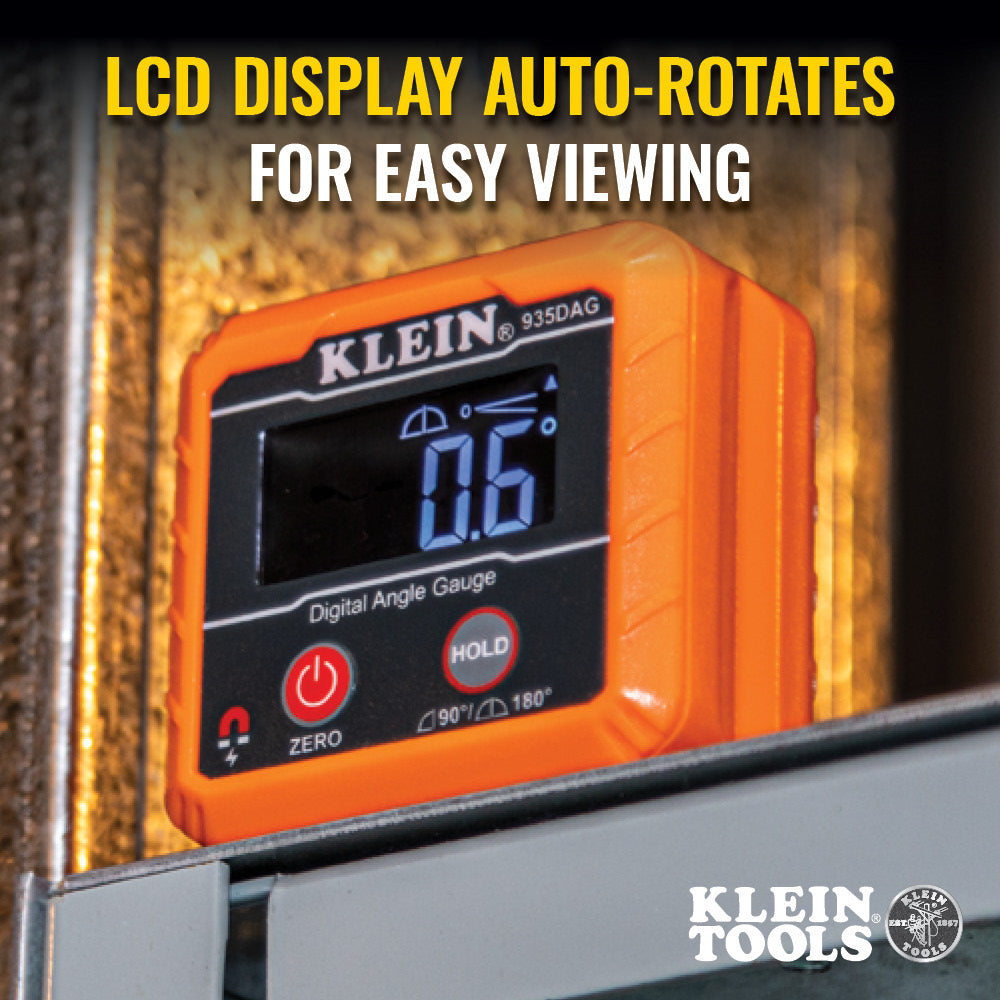

- Display auto-rotates when upside-down for easy viewing
- Water and dust resistant with rating of IP42

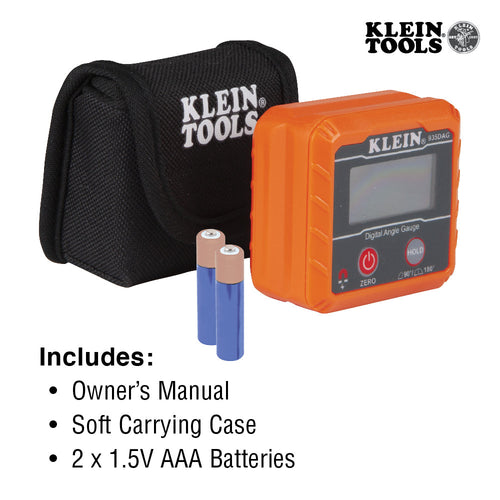

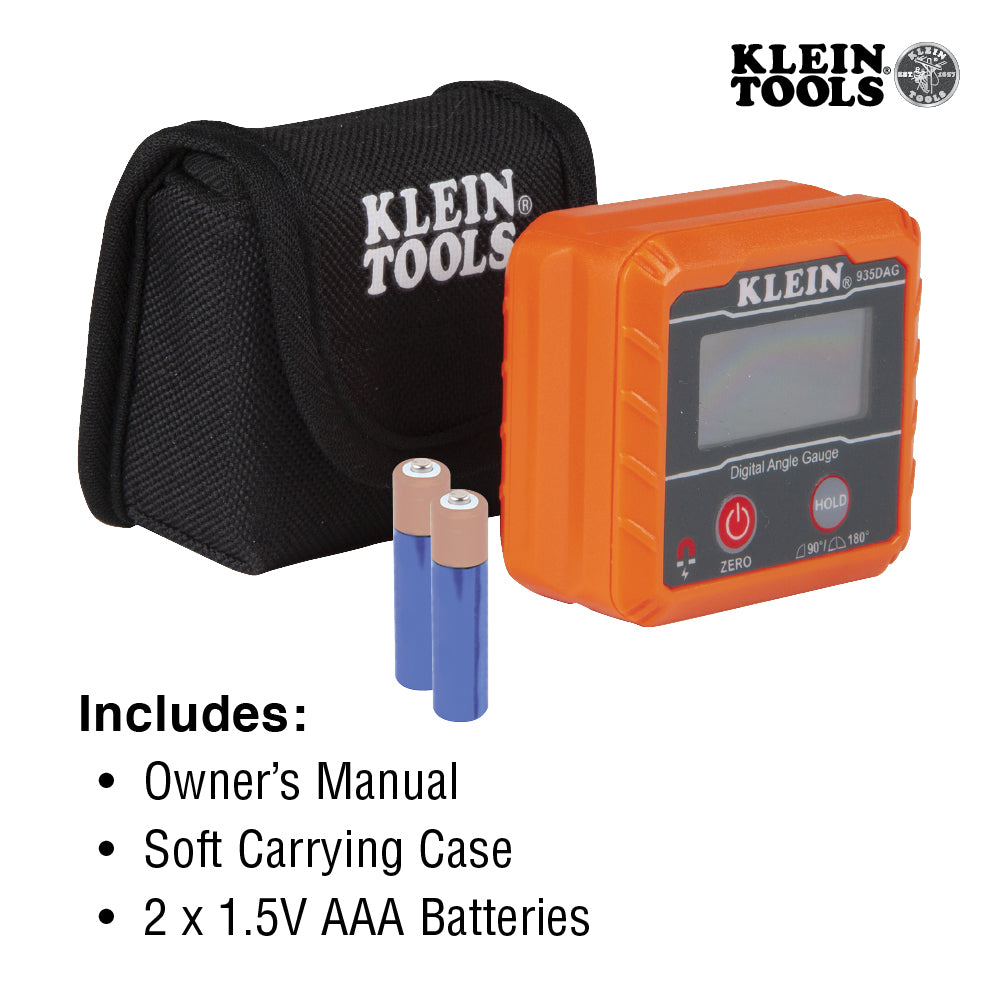

- Soft carrying case and two AAA batteries included
The Klein Tools Digital Angle Gauge and Level can measure or set angles, check relative angles, or can be used as a digital level. The strong magnetic base attaches to ferromagnetic surfaces such as conduit. Along with dual measurement ranges of 0 to 90-Degree and 0 to 180-Degree, this tool has a high visibility reverse contrast display for easy viewing.
Specifications
| Type: | Digital Level |
| Application: | Measure or Set Angles, Check Relative Angles, or Use as a Digital Level |
| Special Features: |  V-grooves Around Entire Perimeter, Dual Measurement Ranges at 0° to 90° and 0° to 180°, Reverse Contrast |
| Material: | ABS Plastic Housing and Electronic Components |
| Magnet Type: | Permanent Rare Earth |
| Accuracy: | +/- 0.1° from 0° to 1°, 89° to 91°, 179° to 180°; +/- 0.2° at All Other Angles |
| Drop Protection: | 6.6' (2 m) |
| Ingress Protection: | IP42: Water and Dust Resistant |
| Low Battery Indicator: | Yes |
| Batteries: | 2 x 1.5 AAA |
| Included: | Soft Carrying Case, Instruction Manual, Batteries |
| Overall Length: | 2.36'' (6 cm) |
| Overall Height: | 2.2'' (5.6 cm) |
| Overall Width: | 1.2'' (3 cm) |
|
Weight:
|
3.5 oz (99.2 g) |
WARNINGS
- Read, understand, and follow instructions to ensure safe operation
- Always wear approved eye protection
- See instruction manual for additional warnings
