Makita 36V (18V X2) LXT® Brushless 6‑1/2 Plunge Circular Saw Kit (5.0Ah)

Makita 36V (18V X2) LXT® Brushless 6‑1/2" Plunge Circular Saw Kit (5.0Ah)

Makita

Options

ACCURACY : Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
SPEED : Variable speed control dial (2,500 - 6,300 RPM) for optimum performance in a variety of materials
CONTROL : Easy to set depth adjustment with large scale
DESIGN : Slide lever on base engages the guide rail (sold separately) when bevel cutting for stability
INCLUDES : (2) 18V LXT® 5.0Ah batteries, dual port rapid charger, 55T carbide-tipped blade, wrench, (2) cases

ABOUT

The Makita 36V (18V X2) LXT Brushless 6-1/2” Plunge Circular Saw Kit (XPS01PTJ) delivers precise and more accurate cutting when combined with an optional guide rail system (sold separately). The saw and rail system work together to produce accurate cuts with minimal tear-out. The saw combines a powerful Makita-built brushless motor powered by two 18V LXT® batteries with Automatic Speed Change™ Technology, which adjusts cutting speed and torque during the cut for optimum performance.

The Saw has a variable speed control dial (2,500 – 6,300 RPM), with soft start and an electric brake for added convenience. It has a large 2-3/16” cutting capacity at 90 degrees, with a bevel capability of -1° to 48° and positive stops at 22.5° and 45°. When used with a rail system (sold separately) the Plunge Circular Saw is a more portable option to a table saw for select applications, and is ideal for use on the job site or in a workshop.

The kit includes two 18V LXT® 5.0Ah batteries, and each reach a full charge in only 45 minutes on the efficient Rapid Optimum Charger – the fastest charge-time in the category – for less downtime and increased productivity. For added convenience, the batteries feature an integrated L.E.D. battery charge level indicator.

It’s part of Makita’s expanding 18V Lithium-Ion system, the world’s largest cordless tool system powered by 18V Lithium-Ion slide-style batteries. Makita 18V Lithium-Ion batteries have the fastest charge times in their categories, so they spend more time working and less time sitting on the charger.

For improved tool performance and extended battery life, Makita created Star Protection Computer Controls™. Star Protection is communication technology that allows the Star Protection-equipped tool and battery to exchange data in real time and monitor conditions during use to protect against overloading, over-discharging and overheating. For increased versatility, the tool can also be powered by Makita 18V LXT® and Compact Lithium-Ion batteries with the star symbol on the battery indicating Star Protection inside.

Powered by two LXT® batteries; X2 LXT® technology delivers more power, speed and run time without the hassles of a cord
Makita built electronically controlled BL™ Brushless Motor delivers 6,300 RPM for maximum performance and 50% longer run time per charge
X2 LXT® technology delivers up to 125 cuts per charge in 4x8 sheets of 1/2" plywood per charge using two 5.0Ah batteries
Ideal for cutting large wood panels, other wood materials including melamine and MDF, aluminum, and Corian® with optional, material specific blades (includes wood blade, other blades sold separately)
Automatic Speed Change™ technology adjusts cutting speed and torque during cut for optimum performance
Variable speed control dial (2,500 - 6,300 RPM) for optimum performance in a variety of materials
Close to the wall cutting (11/16") for expanded cutting applications
Large cutting capacity (2-3/16" at 90º; and 1-9/16" at 45º)

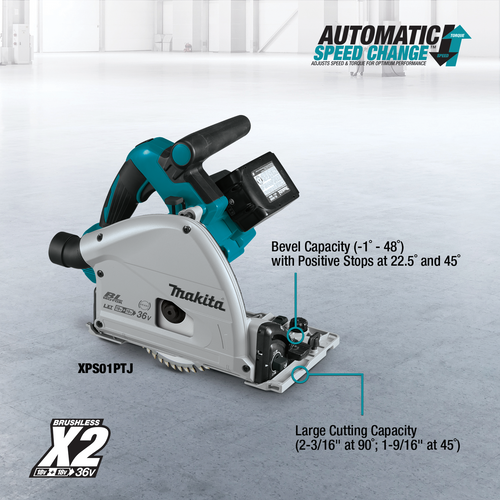

Bevel capability (-1º to 48º) with positive stops at 22.5º and 45º
Electronic speed control maintains constant speed under load for smooth cutting
Soft start feature for smooth start-ups
Easy-to-set depth adjustment with large scale
Smooth and convenient plunge release lever for operator comfort
Dual front and rear bevel supports provide additional rigidity for precise and accurate bevel cuts
On-board hex wrench for fast and easy blade changes
Locking lever holds the blade in position so that the wrench can be inserted through the hole in the blade case for easier blade installation
Built-in depth stop allows a preliminary first cut of (5/64") 2mm to (7/64") 3mm to be performed prior to cutting through the entire material for clean and splinter-free cutting
Rubberized soft grip handle provides increased comfort on the job
Large 1-7/16" rear dust port directs material away from the operator and easily connects to a vacuum system
Includes a premium 55 tooth ultra thin kerf carbide tipped saw blade (B-57071) ideal for cordless circular saws offering up to 66% more cuts per charge compared to our standard corded plunge saw blade (B-07353)
Optional guide rail system interacts with the saw base to provide smooth, perfect, dead-on straight or bevel cutting
Slide lever on saw base designed to engage the optional guide rail (sold separately) when bevel cutting for stability
Electric brake for maximum productivity
Compact and ergonomic design at 13-5/8" long; weighs only 11.2 lbs. with batteries (batteries not included) for reduced operator fatigue
Precise straight and 45º bevel cuts as the position of the blade enters the material on the same sight line when using a guide rail
3-stage L.E.D. gauges indicate battery charge levels
Equipped with Star Protection Computer Controls™ to protect against overloading, over-discharging and over-heating
Dual Port Rapid Optimum Charger charges two batteries at the same time
The Dual Port Rapid Optimum Charger communicates with the batteries built-in chip throughout the charging process to optimize battery life by actively controlling current, voltage and temperature
For more efficient charging, the Dual Port Rapid Optimum Charger has built-in fans to cool the batteries faster
Makita technology delivers category-leading charge time so the battery spends more time working and less time sitting on the charger
Two 18V LXT® Lithium-Ion Batteries deliver the power and performance of a corded plunge circular saw* without leaving the 18V LXT® platform
18V LXT® Lithium-Ion 5.0Ah batteries (BL1850B) feature an integrated L.E.D. battery charge level indicator
18V LXT® Lithium-Ion 5.0Ah batteries (BL1850B) reach a full charge in 45 minutes or less
Compatible with Makita 18V Lithium-Ion batteries with a Star symbol
3-year limited warranty on tool, batteries, and charger
Only use genuine Makita batteries and chargers
Optional Accessories: Guide Rail:118" (194367-7), 55" (194368-5), Clamp Set (194385-5), Rip Fence (165447-6)
Saw works with other competitive guide rails
*Compared to Makita SP6000J

TECHNOLOGY

Tool users who unplug the cord with Makita 18V LXT® experience new levels of convenience, efficiency and productivity. Makita created the 18V Lithium-Ion cordless tool category in 2005, and today it is the world’s largest 18V cordless tool line-up. Makita’s leading technology gives tool users unmatched performance and breadth of line, with innovation in motor and battery technology that is obliterating industry standards – and leaving old thinking behind. With high amp-hour batteries, efficient brushed and brushless motors, and 36V (18V X2) LXT® technology, Makita 18V LXT® tools not only meet corded demands, they can exceed the performance of corded, all while remaining in a single cordless platform powered by the industry's fastest-charging 18V lithium-ion batteries.
Makita cordless tools are engineered for industrial applications, and for added protection during the most demanding jobs Makita created STAR Protection Computer Controls™. STAR is communications technology that monitors conditions during use, allowing the tool and battery to exchange data to protect against overloading, overdischarging and overheating. If STAR detects conditions that threaten to overload, overdischarge or overheat the tool or battery, the tool will automatically stop. At that time the user can either restart the tool, change or charge the battery, and put the tool back to work. When you slide a Makita 18V LXT® battery with the STAR symbol onto a Makita tool that has either the STAR symbol or a yellow terminal, you are benefitting from STAR Protection Computer Controls™.
Automatic Speed Change™ is technology that adjusts speed and torque for optimal performance, even in the most demanding applications. During operation, if the tool is put under heavy load, Automatically Speed Change™ detects the added demand and applies more torque and speed to finish the job. Makita cordless tools with Automatic Speed Change™ are engineered to deliver corded performance, without the cord.
When the job takes your Makita tool into harsh conditions, Makita Extreme Protection Technology (XPT™) provides added protection. XPT™ is a series of integrated seals engineered to channel away dust and water for increased durability. Wherever the job takes you, Makita tools equipped with XPT™ are engineered for increased durability and longer tool life.

SPECS

Blade Diameter : 6-1/2"
Arbor (mm) : 20 mm
Max. Cutting Capacity (at 90°) : 2-3/16"
Max. Cutting Capacity (at 45°) : 1-9/16"
No Load Speed (variable speed) : 2,500 - 6,300 RPM
Battery : 2X 18V LXT® Lithium-Ion
Overall Length : 13-5/8"
Net Weight (with battery) : 11.2 lbs.
Automatic-start Wireless System (AWS®) : No
Power Type : Cordless
Form Factor (LXT) : X2
Motor Type : Brushless
Shipping Weight : 28 lbs.
UPC Code : 088381-851190

INCLUDES

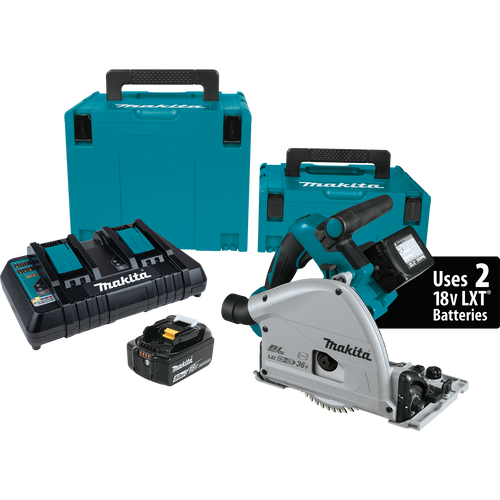

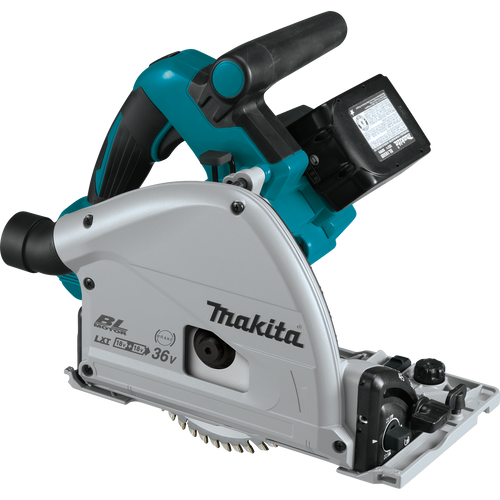

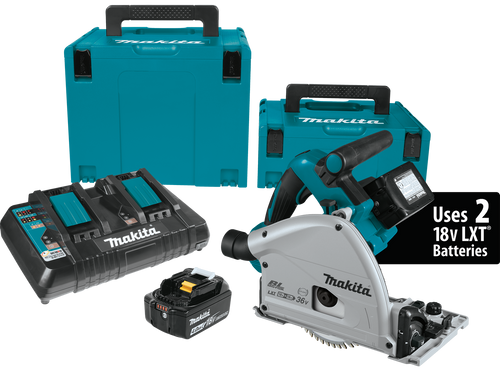

(1) 36V (18V X2) LXT® Brushless 6-1/2" Plunge Circular Saw (XPS01Z)
(2) 18V LXT® Lithium-Ion 5.0Ah Battery (BL1850B)

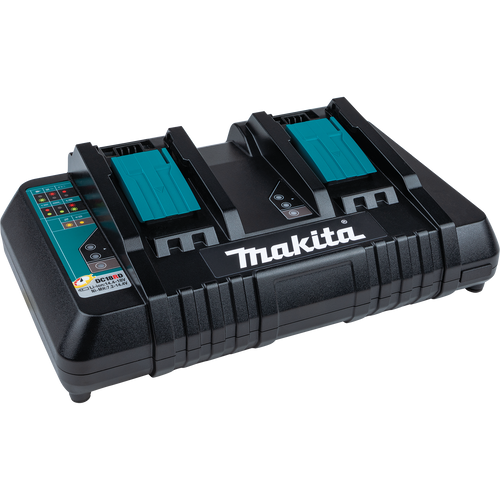

(1) 18V LXT® Lithium-Ion Dual Port Charger (DC18RD)
(1) 6-1/2" 55T C.T. Cordless Plunge Saw Blade, Wood, MDF, Lam. (B-57071)
(1) Hex Wrench (783203-8)
(1) MAKPAC Interlocking Case, X-Large (197213-3)
(1) MAKPAC Interlocking Case, Medium (197211-7)
